Pure Water Window Cleaning

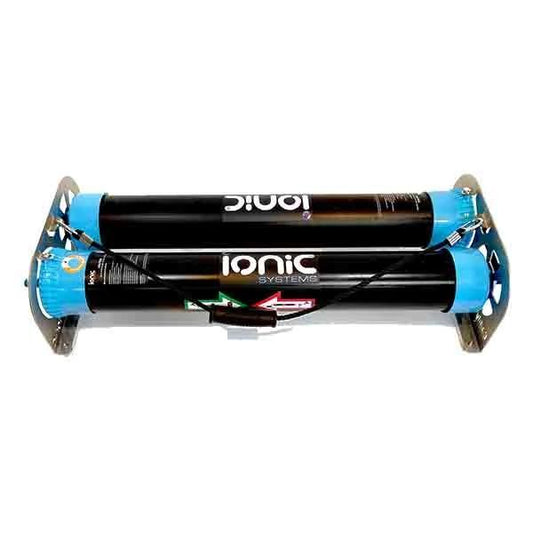

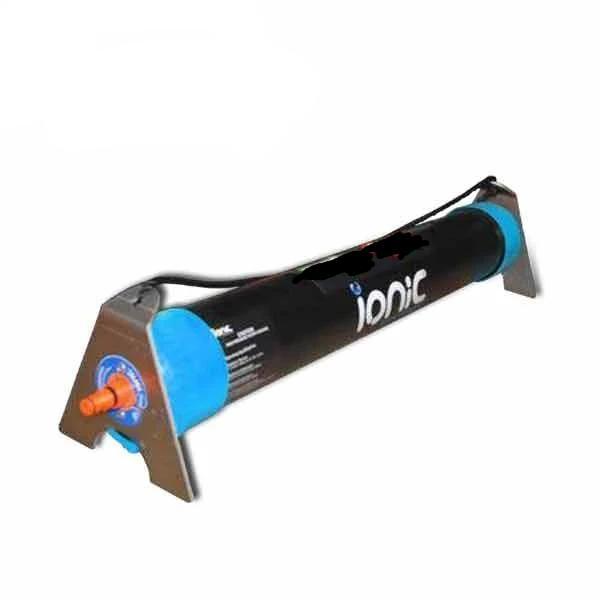

The Ionic Systems Caddy™️ is a simple system that allows water fed cleaning wherever there is access to a water supply.

There are four Caddy™ configurations: A single DI, a double DI, a triple DI and a triple multi-stage filtration system which includes DI, Carbon and RO. All of them come seated in a metal frame with a carry strap.

Units can be chosen from De-Ionization (DI) in soft-water areas where Reverse Osmosis (RO) isn't necessary to RO for hard water areas.

Providing adequate water pressure (50psi/3.5 bar min) is available at the water source, the Caddy™ system can supply an adequate stream of pure water for cleaning...up to 45ft in most cases.

Note: The single system has one polymer housing, the double system has two polymer housings and the triple has three polymer housings.

PERFORMANCE The Ionic System RO/DI Caddy produces up to 1 liter per minute when running at optimal operating pressure (60 psi). The amount is dictated by the incoming water pressure. The maximum should be 80 psi.
*Please check out our article on Winterizing your Ionic Window Cleaning Systems to keep your system in tip top shape through the winter.

If you are needing a water softener caddy then click here.

Video

Included Items

Single, Double or Triple Caddy with metal frame and carrying strap.

OR

Single Di Caddy with metal wallmount.

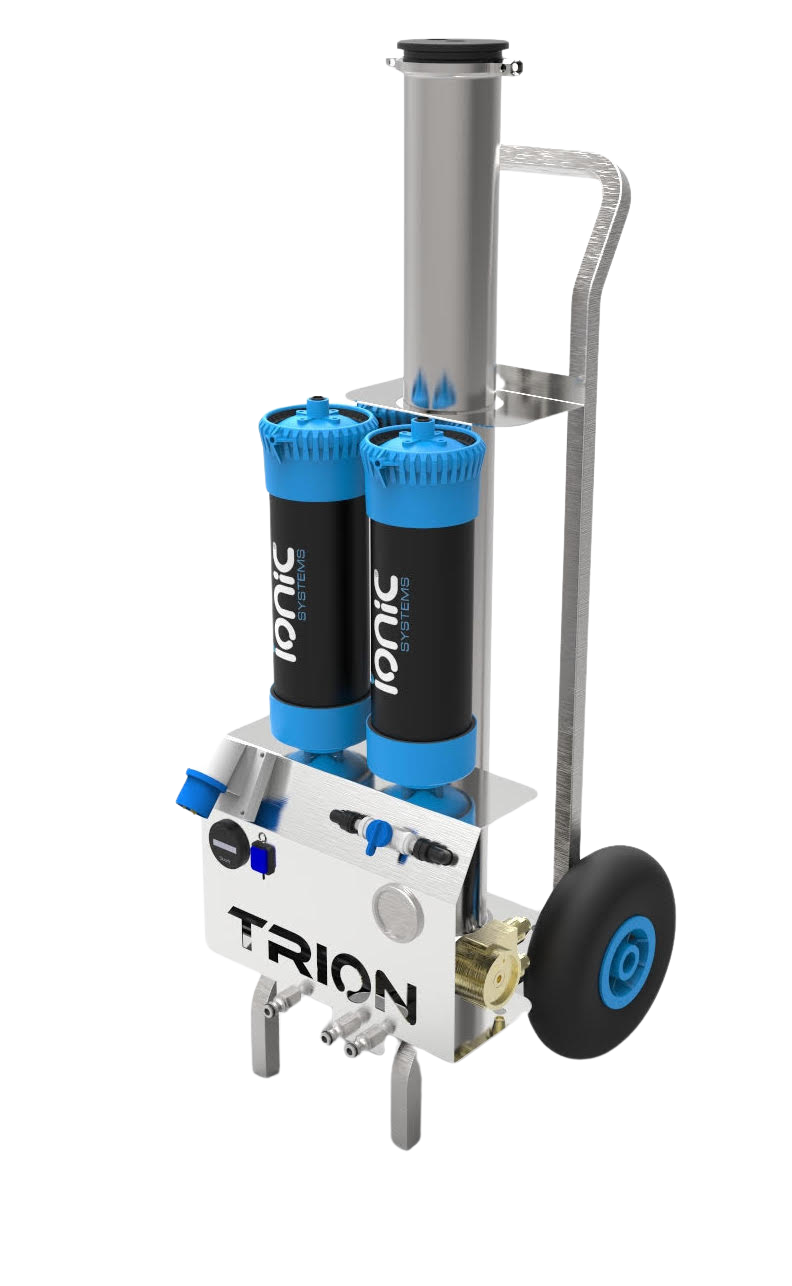

Ionic Systems Trion RO/DI Electric System (110V) - Portable Professional Window Cleaning Cart

The Trion portable system is a multi-stage filtration system for a wide variety of window, solar panel and hard surface exterior cleaning applications. The tough, compact design and ease of use makes the Trion the perfect choice for residential and light commercial work in any area where both water and electricity are available (a generator can also be used).

The Trion uses a combination of reverse osmosis and de-ionization to purify water in areas of hard water. It comes with an electric brass pump powered at 110v, electric motor and controls.

Window cleaners make use of the Trion to access remote parts of modern buildings such as courtyards and roof tops for atrium cleaning and high-rise buildings where suspended platforms are used. On-site building maintenance teams also use the Trion for in-house window and facade cleaning duties.

The Trion has a stainless steel RO housing and plastic filter housings for the DI and Carbon filters. Since the RO housing is stainless steel it can withstand better pressures therefore producing better quality pure water.

The Trion produces up to 5 liters of pure water when running at maximum operating pressure (160 psi).

In certain areas of the country where water is extremely hard an in-line water softener may be recommended to remove harmful calcium which can cause poor performance and premature failure of the RO filter membrane. Please note that the Trion requires a quick manual process for backwashing the RO membrane.

Please contact us for more information.

*Please check out our article on Winterizing your Ionic Window Cleaning Systems to keep your system in tip top shape through the winter.

Video

Demo

Included Items

• 3-Stage Water Treatment:
• Carbon Filter- Removes Chlorine, Protects RO Membrane
• RO Filter- Mechanically Filters Water, Rejects up to 98% of remaining Impurities
• DI Filter- Polishes Water to Zero Parts per Million (PPM)
• Shut-Off Valve
• Automatic Dry-Run Protection
• Electric Powered Water Pump
• Pressure Gauge
• High-Pressure Stainless Steel Filter Housing for Increased RO Pressure and Greater Water-Production

Specs

FAQs

What is the Trion system?
The Trion is a multi-stage purification system designed for window cleaners. It features three stages: activated carbon, reverse osmosis (RO), and deionization (DI).

What does each stage in the Trion system do?
The activated carbon protects the reverse osmosis membrane from premature fouling. The RO performs most of the purification process, and the deionization (DI) resin completes the purification.

How does the activated carbon stage work?
Activated carbon removes chlorine and other harmful substances to prevent them from damaging the reverse osmosis membrane.

What role does reverse osmosis (RO) play in the Trion system?
Reverse osmosis removes the majority of contaminants, handling the bulk of the purification process.

What is deionization (DI) in the Trion system?
Deionization uses a resin to remove the remaining impurities after the reverse osmosis process, ensuring pure water.

What kind of contaminants does the Trion system remove?
The Trion system removes various contaminants, including chlorine, dissolved solids, and minerals, ensuring pure water for cleaning.

Is the Trion system suitable for professional use?
Yes, the Trion is designed specifically for professional window cleaners, providing efficient water purification for high-quality cleaning results.

How does the reverse osmosis system work?
The reverse osmosis system in the Trion removes up to 95% of dissolved solids from the water, leaving only the final impurities to be cleaned by the deionization stage.

What is the lifespan of the filters in the Trion system?
The lifespan of the filters, particularly the reverse osmosis membrane, depends on the water quality and usage. Regular maintenance is recommended to ensure optimal performance.

How do I maintain the Trion system?
Regularly check and replace the filters as needed, especially the activated carbon filter and the deionization resin. Monitoring the reverse osmosis membrane is also important to maintain purification efficiency.

Can the Trion system be used in different environments?
Yes, the Trion system is versatile and can be used in various environments, ensuring pure water for cleaning in different conditions.

Why is the Trion system recommended for window cleaning?
The Trion system provides high-quality purified water, which is essential for streak-free and spot-free window cleaning. Its multi-stage purification ensures that water is free from contaminants that could affect cleaning results.

Manual

Ionic Systems Trion User for the Trion User Manual.

PRODUCT DESCRIPTION

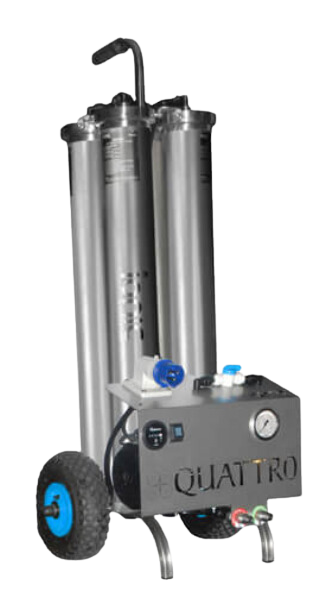

The Quattro portable system is the best point of use system for a wide variety of Window, Solar Panel and Hard Surface exterior cleaning applications. The tough, compact design and ease of use makes the Quattro the number one choice for work in any area where both water and electricity are available (a generator can also be used).

Window Cleaners make use of the Quattro to access remote parts of modern buildings such as court-yards and roof tops for atrium cleaning. High-rise buildings where suspended platforms are used as well as the abseiling technique also benefit from short water-fed pole cleaning from rooftop Quattro use. On-site building maintenance teams also use the Quattro for in-house window and façade cleaning duties as well as spot-free car washing.

The Quattro ‘S’ model is designed for high performance in the Worlds most demanding environments. Plastic filter housings may be prone UV degradation and to failure in temperatures above 30C. The ‘S’ model features high-pressure stainless steel filter housings that can withstand temperatures in direct sunlight of up to 50C. Because the pressure is boosted even further, the QuattRO ‘S’ can be used by several operators up to 80ft.

The Quattro™ – is available in three configurations. The standard Quattro System works from water pressure alone (min 60psi), and is suitable for a single operator to use at lower levels.

• Carbon Filter, Removes Chlorine, protects RO membrane.
• 5 Micron Filter – Removes impurities larger than 5 microns.
• RO Filter- Mechanically filters water rejects up to 98% of remaining impurities.
• DI Filter – Polishes water to zero parts per million purity.

In hard water areas an in-line water softener is recommended to remove harmful calcium. If not removed from the water supply calcium causes poor performance and premature failure of the RO filter membrane.

*Please check out our article on Winterizing your Ionic Window Cleaning Systems to keep your system in tip top shape through the winter.

PERFORMANCE

The Quattro S (110v) System produces up to 5 liters per minute when running at maximum operating pressure (160 psi).

Video

Included items

Quattro System Stainless Steel with trolley and Pump.

Specifications

Dry Weight: 110 lbs (32 Kg)

Wet Weight: 133 lbs (42 Kg)

Height 44.5" (1130mm)

Depth 20" (499mm)

Width 19" (480mm)

Manual

Click here for the Quattro User Manual

“Finally a de-mountable tank system so I can use my van for work during the week and for play at the weekend.”

PRODUCT DESCRIPTION

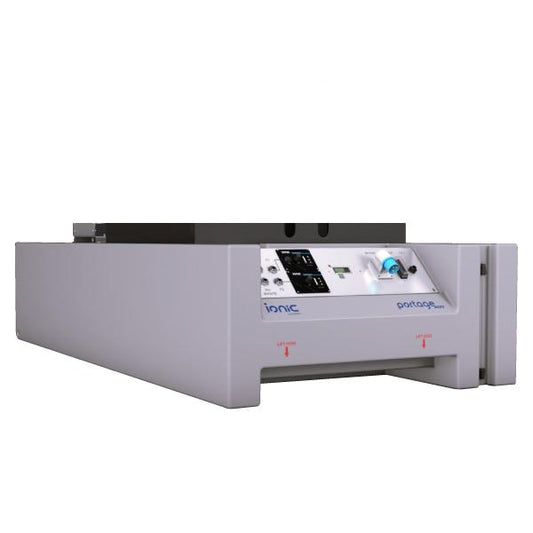

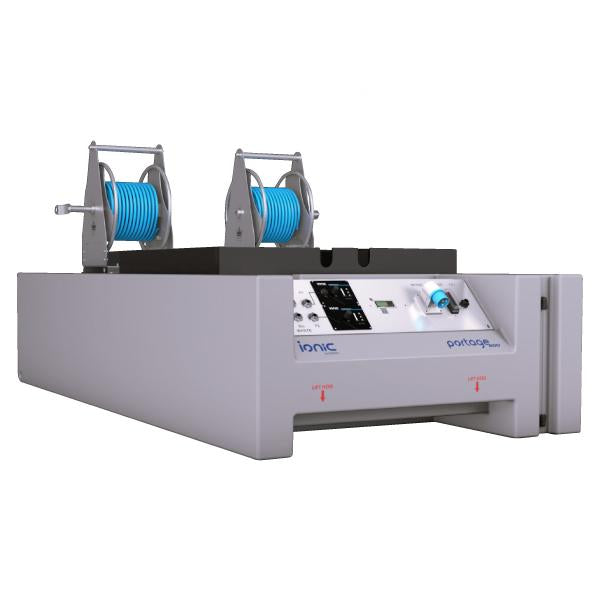

Portage™️ is the perfect solution for a safe, de-mountable pure water window cleaning filtration system. Designed for professional window cleaners, this system easily slides in-and-out of your van or truck in a couple of minutes thus freeing up your vehicle for other needs.

This low-profile tank is available in:

• 105 gallons (400 liter)
• 211 gallons (800 liter)

Simply undo the battery quick connector, remove the mounting pin and the tank can be portaged out of your van and stored until needed for the next days work.

Configurations

Portage™ is available in a number of different specifications. The following two configurations suit the North American market.

Portage Delivery- Designed as a pure water delivery system (only) for quick pure water filling from a static water treatment system. Does not have any filtration features, simply designed for delivery with tank and pump.

Portage Fusion- Designed as a high-performance, fully automatic five-stage RO/DI system with 240vv mains powered boosted fill, PFS™️, ROMS™️, & PDI™️ are all standard features. (Pure water production up to 3 liters per minute dependent on mains water supply)

Please speak with your Clean Direct Rep to discuss other model types available for your area. It may be necessary for your rep to configure your system and send you a quote.

Ergonomic Design

The ergonomic design provides easy access to controls for easy operation and to the filter system for ease of maintenance. We’ve incorporated a handy tool tray for water fed poles, window cleaning tools and drinks cans.

The 211 gallon tank has mounting points for the optional multi-position stainless steel hose reels. These are positioned for easy access via the side loading doors.

Unlike other flat tank systems, the underside of the Portage™ tank has been carefully designed to ensure that 100% of tank capacity runs to the 12v delivery pumps. So unless you’re parked on a steep incline you’ll be able to use every drop of the tanks water capacity even when the water level is low.

*Please check out our article on Winterizing your Ionic Window Cleaning Systems to keep your system in tip top shape through the winter.

Built with Safety In Mind

Window cleaner safety has always been our highest priority. The Portage™ design was inspired after re-watching hours of crash test footage from our 2003 Thatcham crash test program. The lifting forces generated during a certain phase of a head on crash are considerable. For that reason most of the clamping on our other FMVSS-208 tested designs can be found at the rear of the framework. In a head on crash with Portage™ fitted in a van the absence of clamps at the rear of the tank allows the tank to lift and be arrested by the roof of the van instead. The dimensions of the tank and the FMVSS-208 brackets that fix the tank securely to the chassis at the front combine to prevent the heavy water filled tank from colliding with the driver and passenger seats to avoid fatal crush injuries. The benefit of this design is that whilst security is maintained the tank can be removed in minutes leaving the vehicle free for other uses.

Mounting in a Pickup Truck-

A fitting kit is not required for Portage™ tanks that are carried in pickup vehicles. It is however recommended that Portage™ tanks that completely fill the load space are selected. Although it is not a requirement, it is also recommended that Portage™ tanks are secured with ‘tie-down’ straps when transported in pickup type vehicles. If tie-down straps are not used then it is recommended to use wooden blocks to prevent lateral and front to back movement of the tank

Mounting in a Van or on a flatbed trailer-

It must be understood that in the event of a head-on collision an unsecured heavy load need only move the driver and passenger seats forward a small distance for the pre-tensioned seat belts to cause fatal compression injuries. For this reason a Portage™ fitting kit must be installed by a competent person in all vans even when a bulkhead is present. In the event of a head on collision the fitting kits resists the forward movement of the Portage™ tank. The fitting instructions must be followed in every detail.

12 Volt Connection-

Bearing in mind the demountable nature of the Portage™ tank system, the standard 12v connection is made by means of a quick connect fly-lead that plugs into the cigarette lighter. For more permanent installations are intended other more robust 12v power sources with split charging and quick connections are available as optional extras.

* Please note that 600L size has been discontinued.

*SPECIAL NOTE ABOUT HOSE REEL MOUNTING

The 211 gallon (800L) size Portage is designed with a top cover (with storage compartments) and has enough room to mount two hose reels towards the back of the unit.

Because the 105 gallon (400L) size Portage is shorter it does not have the same room to accommodate the hose reels so we have designed an optional custom size cover that has the ability to mount hose reels. This is an optional item, sold separately. Please ask your Clean Direct Rep for details.

Video

Included

Standard Features for the Portage™️ Fusion System

Included as standard:

• Main Unit with Tank
• Twin 12v Delivery Pumps
• Pressure Gauge
• Dual TDS Meter
• Automatic Fill Shut Off (after cycle completes)
• Auto-Compensating Pump Flow Control
• 12" Carbon Filter
• 12" Sediment Filter
• 12" DI Filter
• 4029 RO Filter
• PDI™️
• PFS™️ (Perpetual Flushing System)
• ROMS™️ (Reverse Osmosis Maintenance System)
• Plastic Housings for Carbon, Sediment & DI Filters
• Stainless Steel Housing for RO Membrane

Optional:

• Fitting Kit for Portage Fusion Van/Trailer (FKPF-V)
• Cast Mounting Brackets (FMVSS-208)
• Mountable Steel Hose Reels
• Ionic RX Hose (sold as one length 328 ft. / 100m) (suitable for hot water)
• Variable Pump Control
• Dual 360º Stainless Steel Hose Reels (P-SHR x 2)
• Split Charger
• Stainless Steel Tank (ask us for custom quote)

Optional for Hard Water Areas:

In-line water softeners are highly recommended for use in hard water areas. TDS readings over 200 would be considered hard water area.

Specifications

Dimensions

105 Gallons (400 L) - Length = 4 ft 9 in, Width = 4 ft, Height = 1 ft 7 in

211 Gallons (800 L) - Length = 8 ft 2 in, Width = 4 ft, Height = 1 ft 7 in

Special Note

All Portage shipments require to be packed in a 6 sided crate for safe shipment from the UK manufacturing plant to our facility in NC. We do charge our actual cost for this crate to the customer as a separate line item. Please ask your Clean Direct Sales Rep to supply you a quote. Local pick up is also available but crate charge still applies.

Manual

Ionic Systems Portage User Manual for the full user guide and instructions.

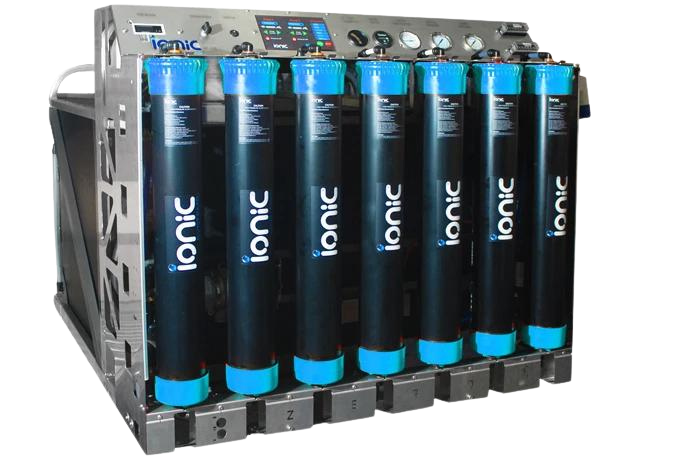

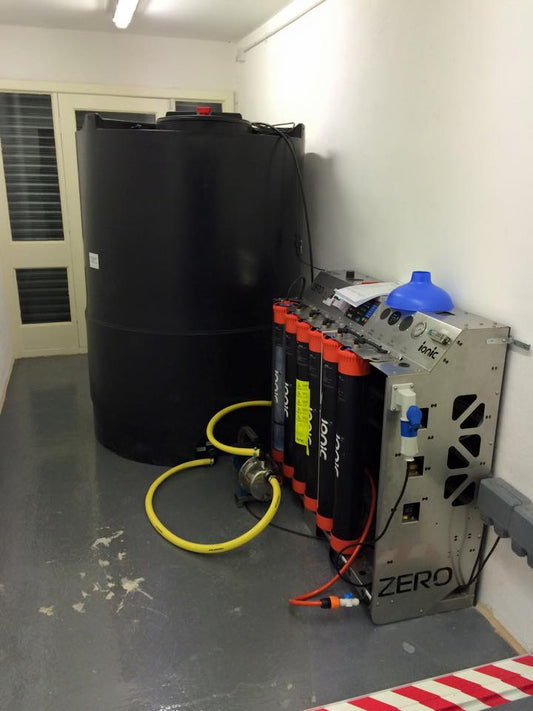

The Zero™️ System

Ionic Systems Reach & Wash® System called The Zero™️ represents a leap forward in pure-water cleaning. It contains several unique technologies and is the most advanced system available. It represents the Ultimate in pure water window cleaning systems and sets the new GOLD STANDARD for purification at Parts Per Billion (PPB).

Why has the purification standard changed?

In 1997 Ionic Systems introduced The Reach & Wash® System and at that time they told the World of Window Cleaning that water of zero parts per million (0ppm) was the standard required for spot free results; however, water fed poles are not magic wands and both cleaners and customers alike sometimes experience windows left with less than perfect results.

Fast forward to today and now Ionic’s new ‘Zero’ produces ultra pure water at zero parts per billion (0ppb) and sets a new GOLD STANDARD for pure water cleaning.

Water at 0ppb is one thousand times purer than water at 0ppm and because pure water cleans by dissolving dirt ions, it follows that water at 0ppb is capable of dissolving 1,000 times more dirt than water of 0ppm.

Other systems remove only dissolved solids from the water supply; uniquely the Zero removes both dissolved solids and all organics as well as bacteria from the water supply. The result is not only water that is 1,000 times purer but also ultra pure water free from micro-organisms such as legionella bacteria and the organic matter that bacteria feeds upon. A significant benefit is that bio-film cannot form upon the surface of filter media or the RO membrane that means that filters maintain day one performance which in turn means lower running costs.

Features & Benefits

The Zero™️ System has an impressive 8 stages of water treatment and automated tech including:

• PFS™️ Periodic Flush System - On start up this feature automatically flushes the Reverse Osmosis Membrane for a period of 2 minutes. Thereafter the RO flushes for 2 minutes every hour during the filling process.
• ROMS™️ Reverse Osmosis Maintenance System - At the end of each tank fill, pure water is diverted to the RO membrane housing. Leaving the RO membrane bathing in pure water between fills ensures that dissolved solids (found in tap water) do not foul the membrane. Further, dissolved solids that are not removed from the membrane surface during Periodic Auto Flush cycles are absorbed by the pure water during the "rest period" to be flushed away during the first flush on startup.
• PDI™️ - Perpetual De-ionization - This feature considerably extends DI resin contact time. Ultra purification is achieved by repeated exposure of purified water to the final DI polishing stage.Cleaning with the 18meg-ohm (0PPB) water is a breeze, powering through years of baked on dirt and the dulling effects of pollution on glass. Pure water production of up to 5 liters or 1.6 gallons per minute at maximum operating pressure of 80 psi. This holds true for the 'S' version as well.

*Please check out our article on Winterizing your Ionic Window Cleaning Systems to keep your system in tip top shape through the winter.

Video

Please note: This video and some pictures may show the all stainless steel casings..those are available as an upgrade and are priced separately.

 Included Items

The Zero™️ System comes in several sizes of water storage. Please choose your desired gallon storage size by clicking on the drop down menu.

The Zero™️ "S" System comes with a stainless steel housing for the RO membrane. If you are wanting all canisters to be stainless steel this is an upgrade and priced separately. View Stainless Filter Housing JG to see the stainless steel housings.

Note: This system can also be upgraded with the Thermopure system to deliver hot water. Sold Separately. Please contact us if you would like further information or a quote.

Manuals

Access the Ionic Systems Zero User Manual for the Ionic Zero User Manual.

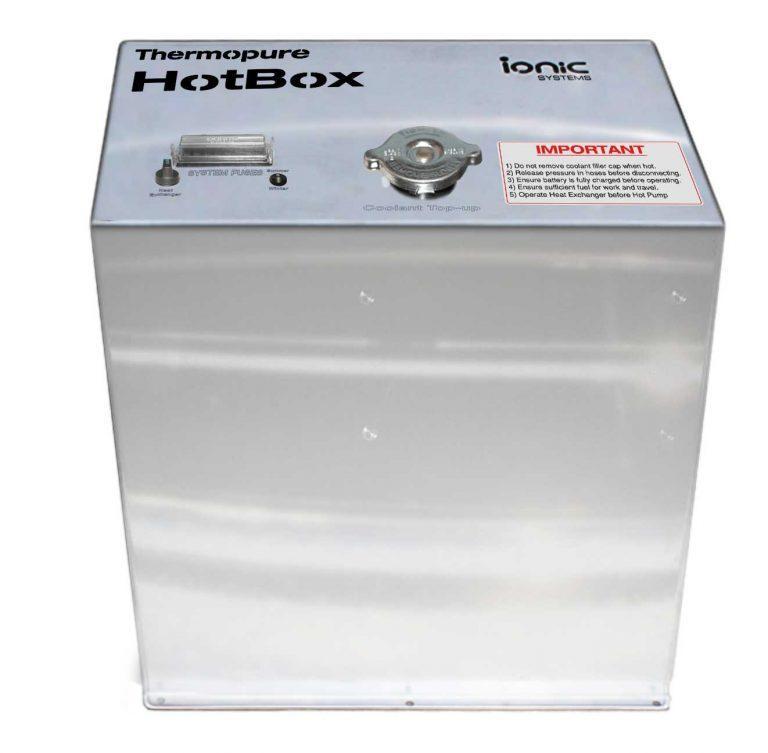

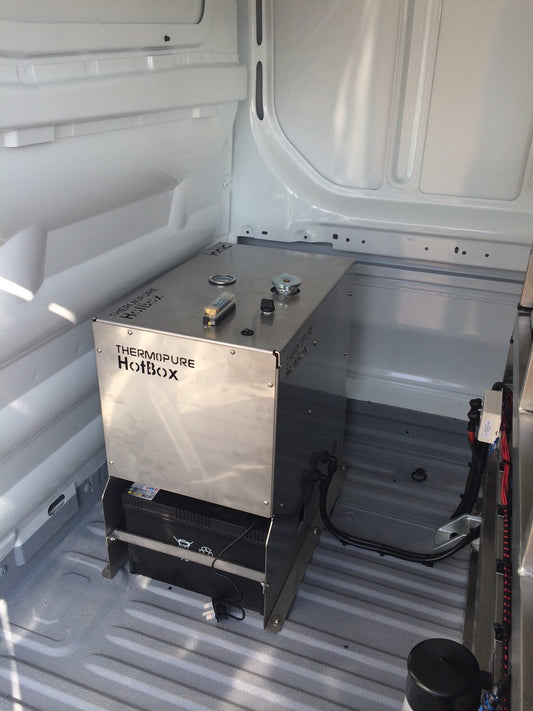

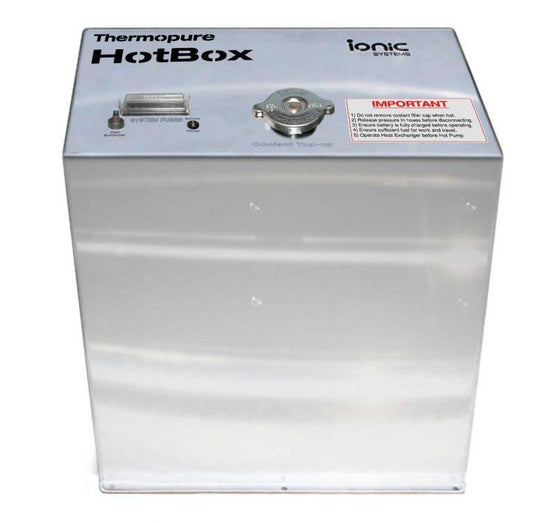

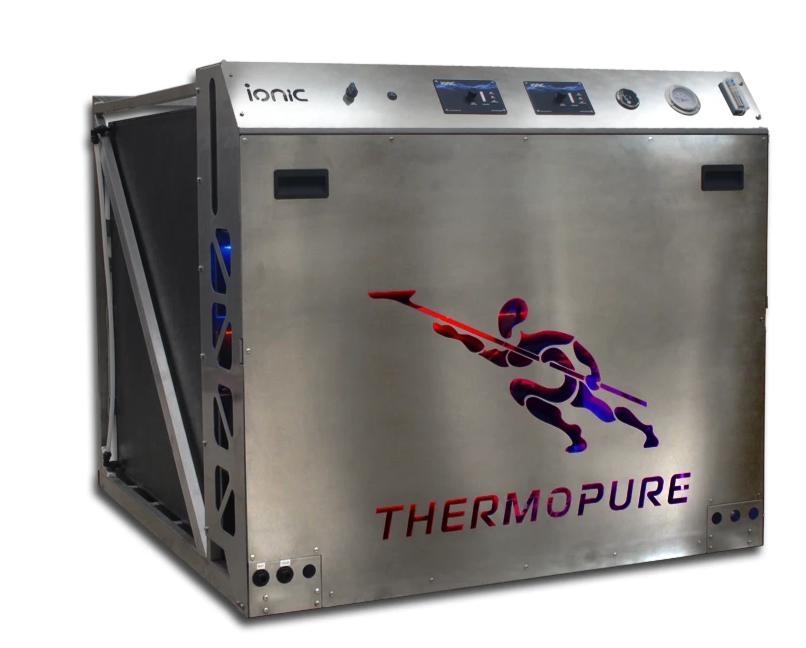

The Ionic Systems Thermopure™️ Hot Water Delivery System is an ideal solution for those that want to benefit from the use of pure water, but don't need water treatment in the vehicle.

Simple to use and easy to operate, this delivery system is the perfect solution for those with several vans on the road.

Please choose the size system you need in the drop down menu.

Don't need hot water?

A cold water delivery system is also available. Please contact us for more information.

Note: This system requires freight shipping

Hot water cleans better!

When heated, pure water becomes an even more powerful cleaning agent, Winter or Summer, adding the compact Hotbox™ to your cold water van-mounted system will give you Initial cleans on even the dirtiest most neglected windows and surfaces. These become a breeze, saving you valuable water and time to fit more work into your day!

In the Winter frozen hoses and cold hands become a thing of the past, clearly the HotBox™ is an upgrade that’ll pay for itself and add to your profit in a very short time.

Hot Water is now more popular than ever when it comes to choosing a new system, but cold-water systems can be upgraded to hot with the HotBox™ from Ionic Systems.

Drawing diesel from either the vehicle’s own tank or a separate remote tank, the HotBox™ is simple to operate and incorporate their own battery charging system. The HotBox™️ uses the same diesel burners as the Thermopure™️ Systems and are capable of hot water within minutes of activation. Available in 5.2kW Mini or 9kW Maxi versions, Hotbox™️ is powerful enough to provide piping hot water all year round.

Perfect for hot and tinted glass. Cut through baked-on dirt. Clean really dirty structures, cladding, metal surfaces, etc. Clean during really cold weather...melt ice and snow.

Video

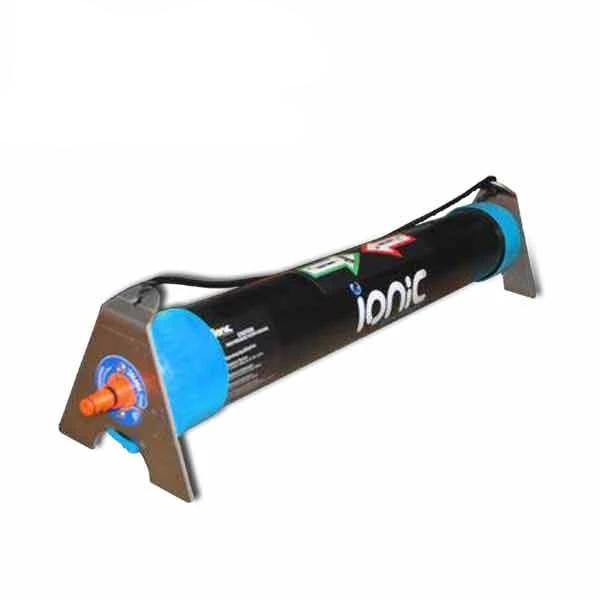

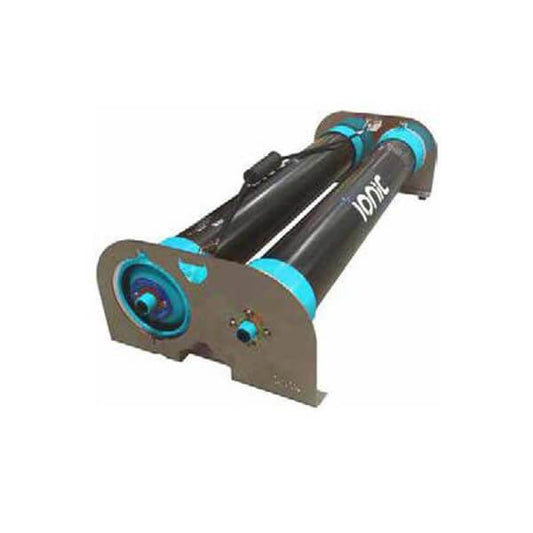

The Ionic Systems Caddy™️ in-line water softener is a simple system ideal for water softening onsite.

This portable caddy is easily carried and connects in-line between the water supply and your pure water machine.

This system has a multitude of uses like window cleaning and mobile detailing but is mainly needed in areas with very hard water.

There are three Caddy™ configurations: A single, a double and a triple filtration system.

PLEASE NOTE: We have pictured all three sizes on this listing. The single will have one filter, the double will have two filters and the triple will have three.

*Please check out our article on Winterizing your Ionic Window Cleaning SystemsHow to Winterize Your Ionic Window Cleaning System to keep your system or caddy in tip top shape through the winter.

Regeneration

• Standard Regeneration Frequency:
• Most experts recommend a regeneration cycle every 2-3 days to maintain efficiency.
• Factors Influencing Regeneration Timing:
  • Water Hardness: Harder water requires more frequent regeneration.
  • Water Usage: Higher water consumption accelerates the need for regeneration.

Please see below for a helpful chart:

How to Regenerate

Video

Included items

Single, Double or Triple Water Softener with metal frame and carry strap. Each system comes with a Salt Back Wash Canister and two quick connect hoses.

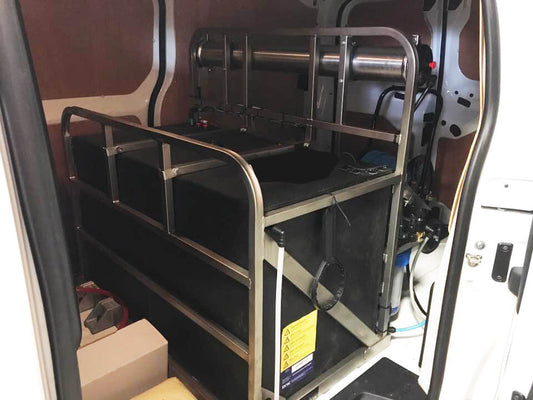

Triton™ is a high performance, manual fill, full five-stage RO/DI system. Fully automated fill with PFS™, ROMS™, & PDI™ is available as an optional extra.

Triton available in several sizes. Please choose below.

• Fully welded, stainless steel chassis, crash-tested and certified to FMVSS-208
• 300-1000 Liter Black Polypropylene, Spark-tested tank, with full internal baffling
• Auto-Compensating Flow Controller
• Automatic Shut Off (when the tank is full)
• 4040 HF5 Reverse Osmosis Membrane (capable of producing over 370 Liters per hour)
• 0-inch 5 Micron and Carbon pre-filters (to protect the RO Membrane) in clear housings
• 7-Liter De-Ionization tank (fully refillable) filled with Ionic DI Resin
• Twin 100PSI Pumps with automatic shut-off

*Please check out our article on Winterizing your Ionic Window Cleaning Systems to keep your system in tip top shape through the winter.

Demo

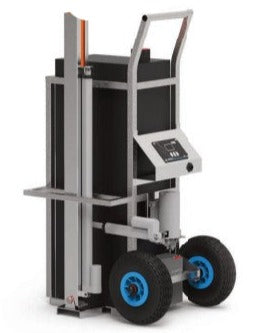

The Ionic Roof Wand™ is a patented, high-pressure roof-cleaning system designed to make roof maintenance safer, faster, and more cost-effective. Engineered for ground-level operation, it removes the need for scaffolding, powered access, or manual scraping. Its rotating turbo nozzles deliver powerful, controlled cleaning that removes moss, lichen, and debris while restoring a roof’s appearance. Mounted on a telescopic mast, the Roof Wand™ provides exceptional reach for high or awkward roof areas, while the downward-forced spray creates a hovering effect that makes guiding the wand smooth and precise. With pumped or non-pumped trolley options, the system offers long-term value for professional exterior cleaning and pure-water window cleaning (with pumped trolley).

Key Features

• Safe ground-level operation—no scaffolding or powered access required

• Patented high-pressure wand with rotating turbo nozzles for fast, effective cleaning

• Reaches up to ~60 ft with an ideal pressure washer (3000 psi, 5 GPM)

• Telescopic mast with 27 ft vertical adjustment and 30° horizontal adjustment

• Hovering spray action for smooth, controlled movement

• Remote control for convenient operation

• One-time purchase eliminates costly equipment rentals

• Compatible with pumped or non-pumped trolleys

• Pumped trolley can act as a pure-water reservoir for window cleaning (system not included)

Applications

• Roof cleaning and moss/lichen removal

• Hard-to-reach exterior surface cleaning

• Professional exterior cleaning services

• Pure-water window cleaning (with pumped trolley)

• Maintenance of residential and commercial buildings

Components:

The three components that make up this solution are:

• Trolley
• Mast
• Pole Kit

For the trolley there are two options available:  Pumped and non-pumped. The pumped version allows the operator to use the trolley as a pure water reservoir for window cleaning.  Pure water production system not included.

PLEASE NOTE: Pressure Washer (not included)

The ideal pressure washer will be approximately 3000 psi, 5 GPM and the roof wand will reach approximately 60 ft high.

Videos

Disclaimer: These videos are the property of its original creator or manufacturer and is provided here for informational purposes only. Clean Direct does not claim any rights to this content and is not responsible for its accuracy or representations.

Included

• Trolley (pumped or non-pumped)
• Mast
• Pole Kit- Pole, Nozzles & Connectors

PLEASE NOTE: This does not include a pressure washer. If you do not currently own one then you will need to purchase one. Pressure Washer specifications should be a minimum of 3000psi and 5 Gallons Per Minute (GPM).

The trolley is supplied with a 12v 22amp hour battery that will need connecting under the black cover (remove the screws to access the battery). The battery needs to be charged after every use using a 110v battery charger supplied. The remote FOB will also require charging after every use, this just plugs into a USB port using the short black cable provided.

Specifications

• Length of Roof Wand: 59 ft 1 in (18M)
• Length of individual poles for Roof Wand: 6ft 7in (2M)
• Length of Roof Mast
• Section 1: 202.6cm
• Section 2: 161.6cm
• Section 3: 157.7cm
• Section 4: 153.8cm
• Section 5: 149.7cm
• Section 6: 145.7cm
• Section 7: 141.4cm
• Mast Trolley uses transverse clamps
• Roof Wand uses 2 transverse clamps on the handle sections and the rest are push fit
• Fitting between Roof Wand pole and Roof Mast is a high pressure hydraulic type hose rated at 2500psi
• Pole fitting: Hose and trigger assembly connectors are TST series 165.5 inch
• 24.2 in × 20.9 in × 43.3
• Mast trolley weight (dry): 81.6 lbs / 37 kg
• Mast trolley weight (wet): 235.8 lbs / 107 kg

Manuals

Roof Wand User Manual

V4™️ is version 4 of The Reach & Wash System first launched in 1997.

The V4™️ truck-mount pure water professional window cleaning system has seen significant improvements over the lifespan of its development. 10% weight reduction and a lower center of gravity has improved vehicle handling.

It boasts tech options to improve filter performance, RO membrane life and water quality.

Tech Features:

• PFS™️ Periodic Flush System - On start up this feature automatically flushes the Reverse Osmosis Membrane for a period of 2 minutes. Thereafter the RO flushes for 2 minutes every hour during the filling process.
• ROMS™️ Reverse Osmosis Maintenance System - At the end of each tank fill, pure water is diverted to the RO membrane housing. Leaving the RO membrane bathing in pure water between fills ensures that dissolved solids (found in tap water) do not foul the membrane. Further, dissolved solids that are not removed from the membrane surface during Periodic Auto Flush cycles are absorbed by the pure water during the "rest period" to be flushed away during the first flush on startup.
• PDI™️ - Perpetual De-ionization - This feature considerably extends DI resin contact time. Ultra purification is achieved by repeated exposure of purified water to the final DI polishing stage.

System Features:

• Digital Flow Control -  Auto-compensating digital flow control allows precise operation of the pumps
• Dual TDS Monitoring - The TDS of the water at critical stages is monitored and shown on a control-mounted digital gauge
• Tank Sight Gauge - Fast and accurate view of the water level in the tank
• Fully Baffled Tank - Black polypropylene tank with advanced baffling for increased vehicle stability
• Twin Pumps - The V4™️ has two independently controlled pumps allowing more than one cleaning pole to be used at the same time (each produces up to 4 liters per minute per pole)
• Pump Activation
• Easy Refillable Filters - The filter media cartridge is simply replaced when spent
• Stainless Steel Chassis - Covered by our 10-year warranty
• Battery Charger - Integrated mains-powered CTEK battery charger (optional)

5 Stages of Filtration:

1. Carbon
2. Sediment
3. Reverse Osmosis
4. De-Ionization
5. Perpetual De-Ionization

Special Note:

An Ionic Systems In-line Water Softener is highly recommended for use in hard water areas. It can prolong the life of the RO Membrane. These are sold separately and can be found here.

*Please check out our article on Winterizing your Ionic Window Cleaning Systems to keep your system in tip top shape through the winter.

Styles

V4™️ Configurations (Choose from drop down list):

DiFUSE™️ (10 MEGΩ) (No Pump)

DiFuse is Ionic's cold pure water delivery truck-mount delivery system. Designed for quick pure water filling from a static water treatment system or emergency filling from a main water supply.

FUSE™️ (11 MEGΩ) (No Pump)

The FUSE™️ is a high performance, fully automatic, full five-stage RO/DI system. Fully automated fill with PFS™️ and PDI™️ are standard. Pure water production is up to 3 liters per minute dependent on the main water supply.

FUSION™️ (12 MEGΩ) (Pump)

FUSION™️ is a high performance, fully automatic five-stage RO/DI system with boosted fill, PFS™️, ROMS™️, & PDI™️ as standard features. Pure water production up to 3 liters per minute at maximum operating pressure of 80 psi.

FUSION™️ S (Pump)

FUSION™️ S is an ultra high performance system designed for the most demanding customers as well as the world's hottest climates. Fully automatic five-stage RO/DI system with boosted fill, PFS™️, ROMS™️, & PDI™️ as standard features and has stainless steel filter housings. Pure water production is up to 5 liters per minute at maximum operating pressure of 160 psi.

V4™️ THERMOPURE

The new V4™️ THERMOPURE fills the gap between Ionic's Zero™️ with zero Parts Per Billion (PPB) water quality and Ionic's cold water V4™️ The system provides a hot water experience. Previously your only option was to add the Ionic HotBox™️ alongside your system. Now it's a fully integrated hot water, pure water experience.

V4™️ STATIC

The V4™️ STATIC system does not contain any water storage. It is a delivery system only. The S version has a stainless steel container for the RO Membrane (the other canisters are Polyethylene. A fully stainless steel version is available (all canisters in stainless steel), please speak to your sale rep to get a custom quote.

The MEG Ω Difference

The MEG Ω is a small unit of measure, but ultra pure water in the MEG Ω range delivers faster, better spot free results that you can visibly see.

Video

Included Items

Standard on V4™️

• Heavy Duty Stainless Steel, fully welded, Crash-test Certified Component Chassis to FMVSS-208 Standard
• FMVSS-208 Cast Mounting Brackets
• Pump Control
• Hi-Density Polypropylene Spark Tested Baffled Tank
• Automatic Fill Shut Off
• Auto-compensating Pump Flow Control

5 Stages of Filtration:

1. Carbon
2. Sediment
3. Reverse Osmosis
4. De-Ionization
5. Perpetual De-Ionization

Other Items to consider (sold separately):

• Water Softener
• Vehicle Side Ports
• Vehicle Side Electric Port
• Ionic Hydra Water Fed Pole & Fly Lead
• Hose Reels
• Roof or Side Pole Rack
• Spare Filters
• Professional Installation (Please contact us for quote)

Specifications

Available in different Tank Capacities

• 300 Liters = 79.25 Gallons, Height 44 in, Width 45 in, Depth 37 in
• 400 Liters = 105.67 Gallons, Height 44 in, Width 45 in, Depth 37 in
• 500 Liters = 132.08 Gallons, Height 44 in, Width 48 in, Depth 46 in
• 600 Liters = 158.50 Gallons, Height 44 in, Width 48 in, Depth 46 in
• 700 Liters = 184.92 Gallons, Height 44 in, Width 48 in, Depth 46 in
• 800 Liters = 211.33 Gallons, Height 44 in, Width 48 in, Depth 53 in
• 900 Liters = 237.75 Gallons, Height 44 in, Width 48 ini, Depth 53 in
• 1000 Liters = 264.17 Gallons, Height 44 in, Width 48 in, Depth 53 in

Manual

Click here to download the V4 Operator's Manual.

Click here to download the V4 Thermopure Operator's Manual.
