SkyVac Replacement Protective Camera Case Only

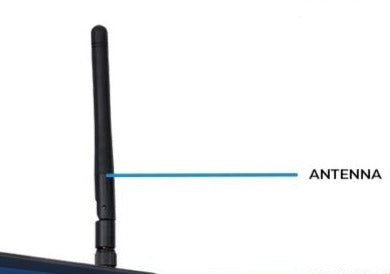

This is a replacement monitor antenna (only) for the SkyVac® Recordable/Non-Recordable Inspection Camera System. Does not include any other accessories.

Day or Night, no ladders, scaffolding, scissor lifts or cherry pickers required...

Our lightweight telescopic SkyPole elevates our wireless SkyCam up to 44ft (14 meters) to provide photo and video capture capability.  It can also be used as a water fed pole to dispense gutter brightening solution.

The commercial-grade carbon fiber SkyPole is one of the lightest poles on the market but is engineered to be tough and rigid.

Note: The camera is purchased separately: SkyVac SurveyCam High Reach Inspection System.

Also works with the Skyscraper HeadSkyVac® SkyScraper Head, SkyScraper Head and Brushes, Skyscraper Wire Brush, SkyScraper Speedi Brushes, and SkySweeper Brush.

Typical Usage

• Building inspection, indoors & outdoors
• Gutter & roof inspection
• Security & surveillance
• Plus many more applications...

Disclaimer:

Clean Direct / SkyVac® high-reach poles are not designed or certified for use in combustible dust environments. Use of this equipment in such conditions may result in serious injury, property damage, or other hazards.

Please note that carbon fiber poles are electrically conductive. Operators should exercise extreme caution when using this product around any electrical source, including overhead power lines, outlets, equipment, or during outdoor use in storms or wet conditions.

The operator assumes all risks associated with using this product outside its intended purpose and operating guidelines.

Specifications

24 foot - 3.6 pounds, collapsed length 5.3 feet, 50% carbon fiber

34 foot - 5.5 pounds, collapsed length 6.4 feet, 100% carbon fiber

44 foot - 6.9 pounds, collapsed length 7.1 feet, 100% carbon fiber

SkyVac Camera / SkyCam Smart Phone SD Card Reader

Description

Send images and videos of gutter, roof and chimney inspections directly to your customers or colleagues from your smart phone using the SkyCam Smart Phone SD Card Reader.

Simply download the iUSB app onto your smart phone. After taking images or videos with the SkyCam, remove the Micro SD Card from the SkyCam Monitor and insert into the Smart Phone SD Card Reader. Plug the SD Card Reader into your smart phone open the app and send images and videos directly to your client.

*SD card not included.

Included Items

SkyCam Smart Phone SD Card Reader

Specifications

Made for iPhone X/8/8 plus / iPhone 7/7 plus / iPhone6s / 6s plus/ 6/6 plus /5/5s/5c/iPod touch (6th generation)/iPad 4/iPadmini/iPad Air/iPad pro/Mac

Compatible File Format
File: txt.doc.ppt.xls.xlsx.pdf
Music: mp3.wma.wav.m4a.aac.m4r.ogg
Video: mov.mpg.vob.wmv.rmvb.avi.mp4.mkv.flv3gp.rm
Image: Jpg.jpeg.png.gif.bmp.tif.tiff

Computer Systems Supported
Windows xp / Vista / Win 7 / Win 10, Mac OS 9. X or later, Linux2.4.x,iOS8 or Later, Andriod 5.1

Camera Mount - for securing the SkyVac camera onto the Skypole Telescopic Inspection system.

We’ve created a new design for the Camera Mount. Simply screw the mount onto the SkyPole Inspection System and then onto the SkyVac camera (both sold separately) to view out of reach gutters all from the safety of the ground.

*Camera mount included only

This connector is a Euro thread connector and can also be used on other poles with the same threading.

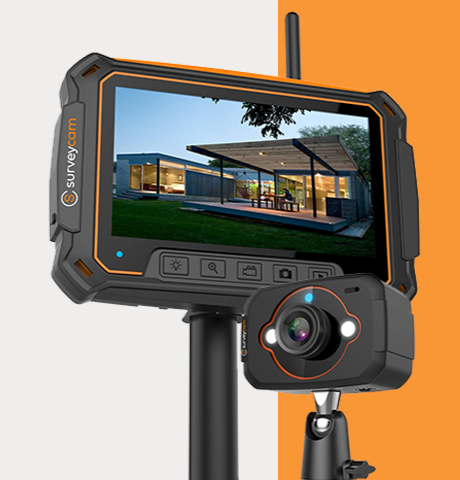

This is a replacement wireless camera head (only) for the SkyVac®️ Recordable/Non-Recordable Inspection Camera System. Does not include any other accessories.

Replacement parts for SurveyCam™️

• Camera Only
• Monitor Only

 Specifications

 SurveyCam® Monitor Specifications:

• Screen Size: 5 Inch TFT LCD
• Display Resolution: 1280x720
• Unobstructed Receive Range: 328 feet
• Zoom: 　 3 levels
• Modulation Mode: GFSK
• Power Supply: 5V (VDC)
• Battery (integrated): 2500mAh
• Charge Time: 3 hours
• Working Time (full Charge): 3 Hours
• Memory: T-Flash Card
• Max.Memory Size: 64GB
• Picture Format: 1 x JPEG
• Video Format: 1280 x 720HD - MP4
• Picture/Video Resolution: 720 Pixels
• Operation Temperature: ℃/°F -10~+50 Centigrade /+14~+122 Fahrenheit
• Dimensions: 6" x 1" x 4"
• Weight: 9 0z
• Weather Proof Rating: IP64 for light showers

SurveyCam® Camera Specifications:

• Image Sensor: 1/4 Inch JX-H62
• Effective Pixels: 1280x720
• View Angle: 45°
• Transmission Frequency: Encrypted 2400~2483 MHz
• Modulation Mode:　 GFSK
• Unobstructed Effective Range: 328 feet
• white LED light range: 6.5 feet
• Power Supply: 5V DVC
• Battery (integrated): 1200mAh
• Charge Time: 2 Hours
• Working Time (full charge): 2.5 Hours (LED OFF）/ 2(LED ON) hours
• Operation Temperature: ℃/°F -10~+50℃ /+14~+122°F
• Dimensions: 2" x 40D x40H mm
• Weight: 2 OZ
• Weather Proof Rating: IP64 for light showers

SurveyCam® Output:

• Video: 1280x720HD When filming for longer periods, videos are automatically saved as 10 Minute video files.   15 Minutes filming would be saved as 1 x 10 minute / 1 x 5 Minute videos.
• Images: 1MP

Replacement parts for SurveyCam™️

• Camera Only
• Monitor Only

 Specifications

 SurveyCam® Monitor Specifications:

• Screen Size: 5 Inch TFT LCD
• Display Resolution: 1280x720
• Unobstructed Receive Range: 328 feet
• Zoom: 　 3 levels
• Modulation Mode: GFSK
• Power Supply: 5V (VDC)
• Battery (integrated): 2500mAh
• Charge Time: 3 hours
• Working Time (full Charge): 3 Hours
• Memory: T-Flash Card
• Max.Memory Size: 64GB
• Picture Format: 1 x JPEG
• Video Format: 1280 x 720HD - MP4
• Picture/Video Resolution: 720 Pixels
• Operation Temperature: ℃/°F -10~+50 Centigrade /+14~+122 Fahrenheit
• Dimensions: 6" x 1" x 4"
• Weight: 9 0z
• Weather Proof Rating: IP64 for light showers

SurveyCam® Camera Specifications:

• Image Sensor: 1/4 Inch JX-H62
• Effective Pixels: 1280x720
• View Angle: 45°
• Transmission Frequency: Encrypted 2400~2483 MHz
• Modulation Mode:　 GFSK
• Unobstructed Effective Range: 328 feet
• white LED light range: 6.5 feet
• Power Supply: 5V DVC
• Battery (integrated): 1200mAh
• Charge Time: 2 Hours
• Working Time (full charge): 2.5 Hours (LED OFF）/ 2(LED ON) hours
• Operation Temperature: ℃/°F -10~+50℃ /+14~+122°F
• Dimensions: 2" x 40D x40H mm
• Weight: 2 OZ
• Weather Proof Rating: IP64 for light showers

SurveyCam® Output:

• Video: 1280x720HD When filming for longer periods, videos are automatically saved as 10 Minute video files.   15 Minutes filming would be saved as 1 x 10 minute / 1 x 5 Minute videos.
• Images: 1MP
