SkyVac® Camera High Reach Inspection Systems (You Choose)

SkyVac High Reach Inspection Camera Systems

Elevate your inspection capabilities with SkyVac’s professional-grade camera systems—designed for precision, accessibility, and performance. Choose from two cutting-edge options: the SurveyCam High-Reach Inspection System for HD recording and playback, or the Real Time Camera System for instant, live-view monitoring. Both solutions are optimized for high-level inspection and gutter cleaning tasks, helping you deliver fast, accurate results directly from ground level.

SurveyCam High-Reach Inspection System

Ideal for contractors, surveyors, and cleaning professionals who require visual documentation, the SurveyCam features a large 5” HD monitor and a high-definition camera with LED lighting and 3x zoom. Capture and review images and video on-site with SD card playback. The encrypted, 100m-range signal ensures uninterrupted, secure transmission—perfect for sensitive projects. Lightweight and weather-resistant, the system includes a rechargeable battery (3-hour runtime) and protective camera case.

Features:

• 5” HD monitor with sunshade and 3x zoom

• Recordable video and image capture with Micro SD support

• Secure encrypted signal up to 100m with GFSK modulation

• Lightweight camera (65g) and monitor system (225g)

• LED camera lighting with 2m range

• Rechargeable battery with 3-hour usage

• Foam-lined, weatherproof carrying case

• Not compatible with iPhones

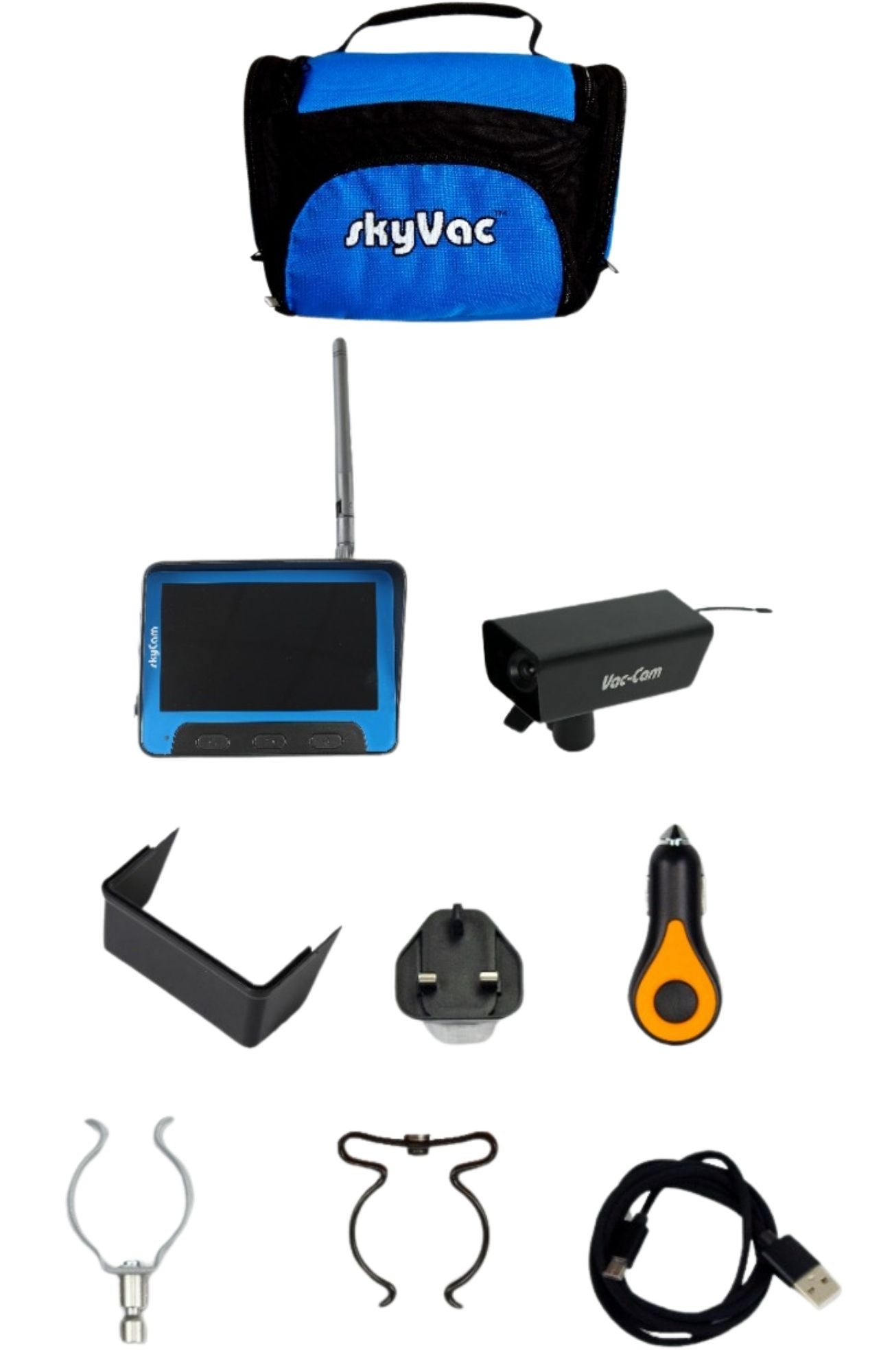

Real Time Camera System

Designed for quick inspections and client demonstrations, the Real Time Camera System offers immediate viewing via a 4.3” color LCD monitor—no apps, wires, or Wi-Fi required. Lightweight, easy to mount, and ready for use in all weather conditions, this system provides up to 50m live viewing range with no recording functionality. Ideal for professionals looking to showcase gutter conditions or job progress instantly.

Features:

• 4.3” color LCD monitor with detachable sun visor

• Real-time live viewing up to 50m range

• Instant pairing, no app or Wi-Fi required

• Lightweight, weather-ready (IP4 rated) components

• LED-lit overhead camera for clear visibility

• Adjustable monitor brightness

• Non-recordable; live view only

Applications

• Gutter inspections and cleaning

• Roof and chimney surveys

• High-reach property inspections

• Commercial and residential maintenance

• Visual documentation for client reporting

• Secure surveillance (SurveyCam only)

Videos

Specs

 SurveyCam® Monitor Specifications:

• Screen Size: 5 Inch TFT LCD
• Display Resolution: 1280x720
• Unobstructed Receive Range: 328 feet
• Zoom: 　 3 levels
• Modulation Mode: GFSK
• Power Supply: 5V (VDC)
• Battery (integrated): 2500mAh
• Charge Time: 3 hours
• Working Time (full Charge): 3 Hours
• Memory: T-Flash Card
• Max. Memory Size: 64GB
• Picture Format: 1 x JPEG
• Video Format: 1280 x 720HD - MP4
• Picture/Video Resolution: 720 Pixels
• Operation Temperature: ℃/°F -10~+50 Centigrade /+14~+122 Fahrenheit
• Dimensions: 6" x 1" x 4"
• Weight: 9 0z
• Weather Proof Rating: IP64 for light showers

SurveyCam® Camera Specifications:

• Image Sensor: 1/4 Inch JX-H62
• Effective Pixels: 1280x720
• View Angle: 45°
• Transmission Frequency: Encrypted 2400~2483 MHz
• Modulation Mode:　 GFSK
• Unobstructed Effective Range: 328 feet
• white LED light range: 6.5 feet
• Power Supply: 5V DVC
• Battery (integrated): 1200mAh
• Charge Time: 2 Hours
• Working Time (full charge): 2.5 Hours (LED OFF）/ 2(LED ON) hours
• Operation Temperature: ℃/°F -10~+50℃ /+14~+122°F
• Dimensions: 2" x 40D x40H mm
• Weight: 2 OZ
• Weather Proof Rating: IP64 for light showers

SurveyCam® Output:

• Video: 1280x720HD When filming for longer periods, videos are automatically saved as 10 Minute video files.   15 Minutes filming would be saved as 1 x 10 minute / 1 x 5 Minute videos.
• Images: 1MP

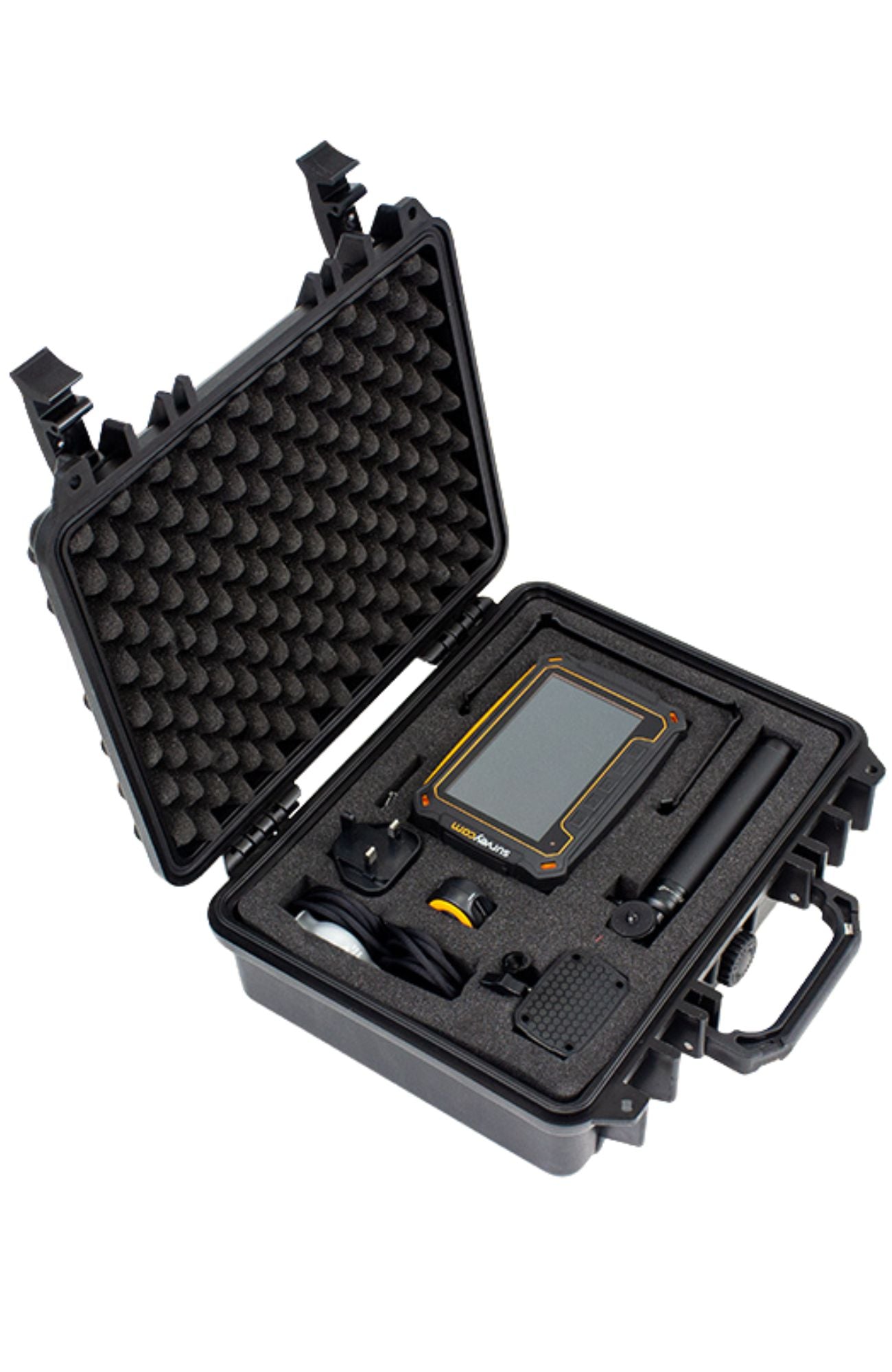

SurveyCam® Photograpic Case:

• Dimensions: 13"x 11" x 5"
• Watertight seal around lid
• Foam protected storage compartments
• Secure double throw latches
• Soft grip handle
• Holes on either edge for padlocking
• Injection Molded high quality Polypropylene

"Real Time" Camera Specifications:

• Image Sensor: 1/4 Inch CMOS
• Effective Pixels: 640 x 480
• View Angle: 45 Degrees
• Transmission Frequency: 2400~2483 MHz
• Modulation Mode: GFSK
• Unobstructed Effective Range: 164 ft / 50 Meters
• White LED light range: 6 ft / 2 Meters
• Power Supply: 5V VDC
• Charge Time: 2.5 Hours
• Working Time (full charge):3 hours (LED OFF）/ 2.5 hours(LED ON)
• Operation Temperature: 10~+50°C/+14~+122°F
• Dimensions: 130 x 30 x 58mm
• Weight: 100g

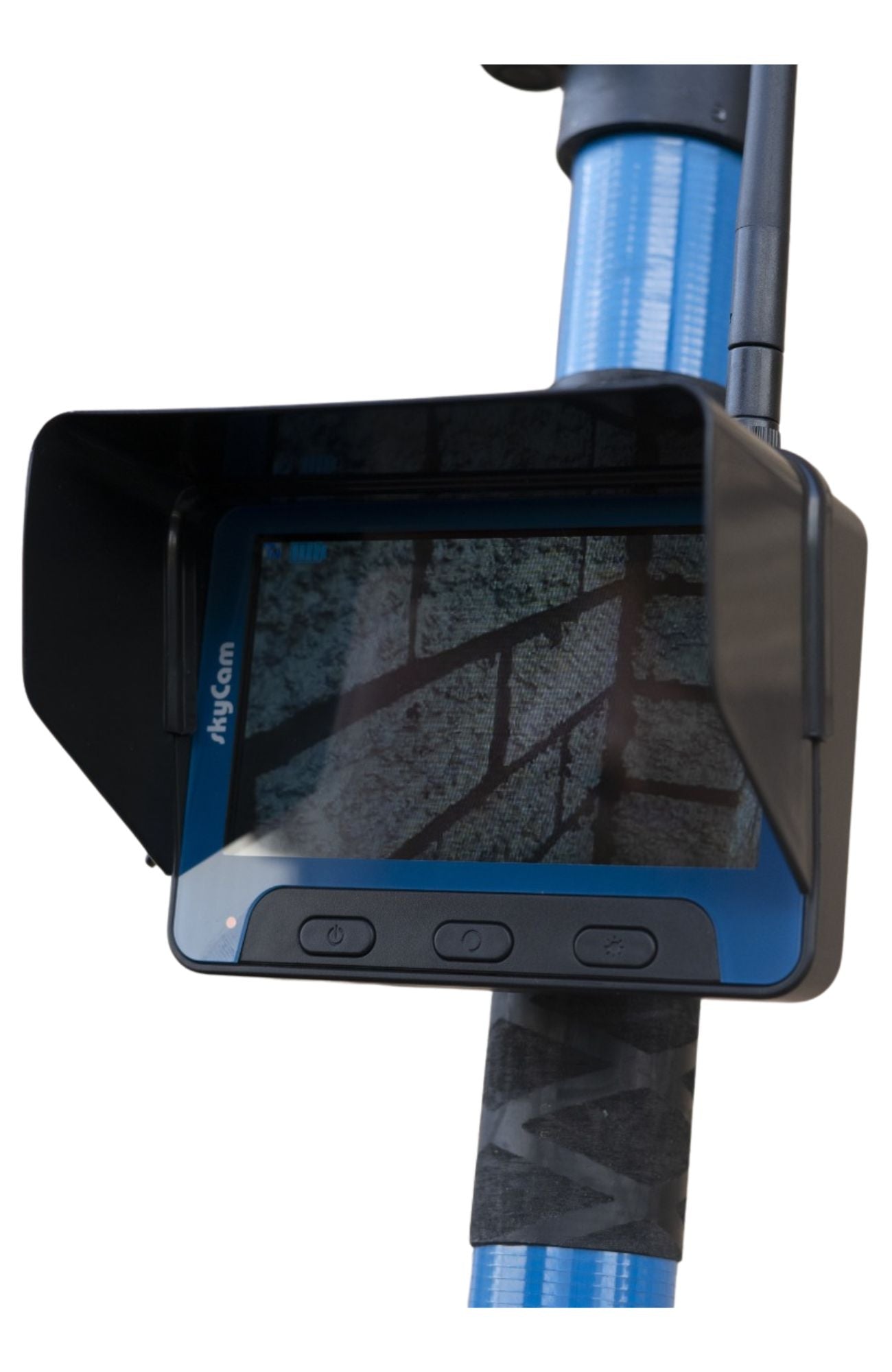

"Real Time" Monitor Specifications:

• Screen Size: 4.3 Inch TFT LCD
• Display Resolution: 480 x 272
• Unobstructed Effective Range: 164 ft /50 Meters
• Modulation Mode: GFSK
• Power Supply: 5V VDC
• Charge Time: 3 Hours
• Working Time (full charge):3 hours
• Operation Temperature: 10~+50°C/+14~+122°F
• Dimensions: 115 x 30 x 135mm
• Weight: 165g

Please Note: The Camera Mount for use with the telescopic pole, is not included as standard. You can find it here.

Telescoping SkyPole Sold Separately.

Manuals

SurveyCam User Manual

"Real Time" Camera System Manual
